Category Archives: Magnetic Yokes News

Portable Magnetizing Coils

Portable Magnetizing Coils

Parker’s magnetizing coils are designed for magnetic particle inspection and may also be used for demagnetizing.The coils allow for the use of either dry powder or wet Black or fluorescent inspection media.

The coils are moulded in a tough, black polyurethane and comes equipped with a foot or Hand switch and 3mneoprene power cord. The sealed electrical connection box has a 50mm X127mm flat base allowing the coil to stand in a vertical position.

The PL-8Sand PL-10Sare for use on 230vac 50-60 hz single phase grounded power source.

The PL-10PDC(Pulsed DC) operates from 115vac, 50-60 hz single phase grounded power source.

The coils are designed for a 50%duty cycle, or approximately two minutes on and two minutes off.

PL-8S Internal Diameter 203mm. PL-10S Internal Diameter 250mm

Magnetic Yokes ‘PS10’is a runout model this Month.

Magnetic Powder Pick-Up stick

The PS10from Parker USA is the handy size magnetic probe for picking up Magnetic Powder residue.

PS10-Small and Lightweight at only 220grams.

PS10-Size30cm x 3.5cm. Extends to 50cm for powder release.

PS10-Made in USA from Durable hard PVC.

Month of September ONLY $98.00+

DO YOU KNOW THE CALIBRATION INTERVAL OF YOUR MAGNETIC YOKE?

DO YOU KNOW THE CALIBRATION INTERVAL OF YOUR MAGNETIC YOKE?

SO, HOW LONG SINCE YOU VERIFIED YOUR MAGNETIC YOKE?
MAGNETIC YOKE CALIBRATIONS: calibrations of all yoke types are conducted by Magnetic Yokes.

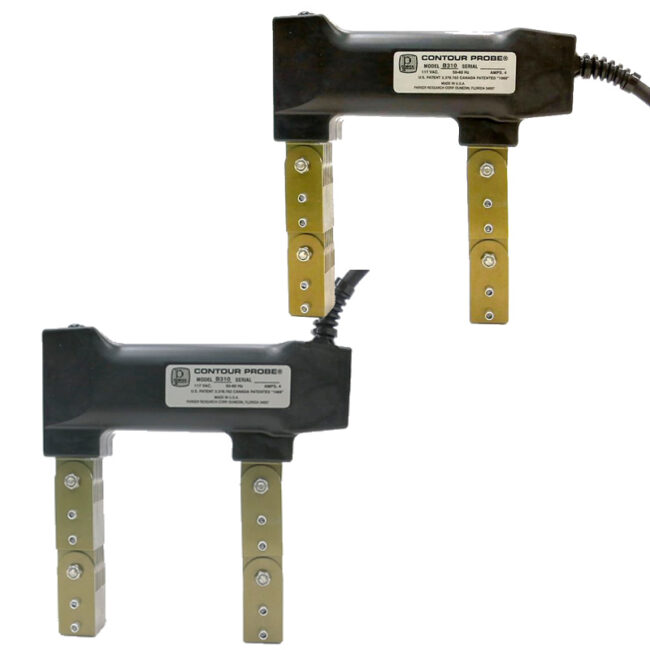

MINI Magnetic Yoke B-310S

Magnetic Yokes ‘B310S’is the MINI Model Magnetic Yoke at only 2.7kg with reversible strain-relief –Top or Rear.

The B-310from Parker USA is the Mini size magnetic yoke at only 184mm length but not mini in features- It still maintains full size legs, has a top mounted switch, the 50% duty cycle and exceeds the lift test requirement.All with a two year warranty.

MG-25 Calibratable Magnetic Field Indicator – Gauss meter

• MG-25- 5 Range 5-0+5 Gauss
• MG-25-10 Range 10-0+10 Gauss
• MG-25-20 Range 20-0+20 Gauss
• MG-25-50 Range 50-0+50 Gauss

Accurate Gauge – to +/-0.5 -10G, +/-1 -20G

DPREDA- Dye Pen Penetrant Red

Upgrade to the new product with collectively over 50 year’s experience in manufacturing Magnetic Particle and Dye Penetrant products to Australian & International standards.

Smarter, Better. Smartchem

AC or DC – DA 400S Magnetic Yoke

Constant AC or Half Wave Rectified DC fields with the flip of a switch for the location of surface and applicable sub-surface defects.

“NEW” DEUTROMETER UNIVERSAL

MPI Field Strength Meter
UV Meter
Light Meter

ALL IN ONE INSTRUMENT

BAC-310 Magnetic Yoke Portable Battery/Inverter Power Supply complete with AC magnetic yoke

Magnetic Yokes presents; BAC-310 the AC Battery/Inverter Power Supply.
This Portable rechargeable lead acid battery back with inverter to 115v AC to power the magnetic yoke anywhere you travel. Complete with Magnetic Yoke, Sturdy steel case and external charger.

UV Lamp – 3817.001

Magnetic Yokes presents the Parker NDT PB1 Powder Blower.

The PB-1 Hand-held Controlled Magnetic Powder Blower provides reliable and controlled application of magnetic inspection powder to areas previously inaccessible – horizontal, vertical and overhead.

PB-1 Magnetic Powder Blower

Magnetic Yokes presents the Parker NDT PB1 Powder Blower.

The PB-1 Hand-held Controlled Magnetic Powder Blower provides reliable and controlled application of magnetic inspection powder to areas previously inaccessible – horizontal, vertical and overhead.

Product Profile; MPIBA Black Magnetic Ink

Magnetic Yokes presents SMARTCHECK MPI BLACK – MPIBA.

SMARTCHECK MPI BLACK is an oil based ready to use black magnetic ink for use in the Magnetic Particle Inspection process. It consists of a dispersion of fine particles of black iron oxide in a highly refined non-volatile hydrocarbon.

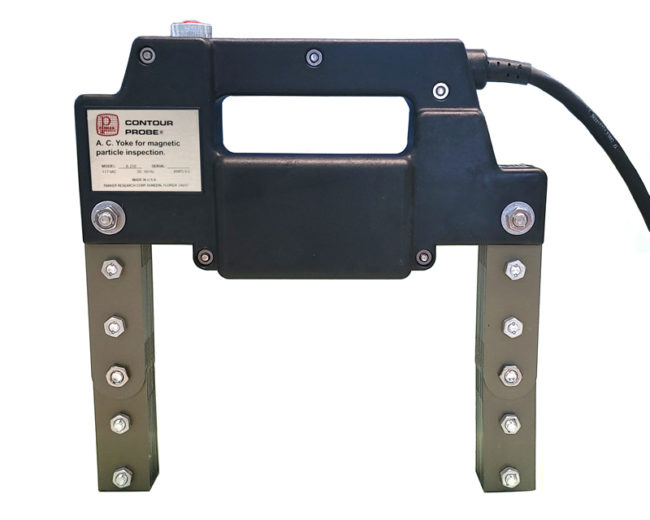

MILSPEC Yoke A-210S – DA200S (AC/DC)

Magnetic Yokes ‘A210s’is the Large High Capacity MILSPEC yoke

The A-210 the Most Powerful Yoke Available, Super-lift for Critical asset Testingin Defence and Aerospace.
From Parker the inventor of the ArticulatedYoke.

Dependable Model Magnetic Yoke B300SAU

Magnetic Yokes ‘B300S’is the rugged sealed yoke model that keeps on going!

Originally the robust go-too model that is just reliable & dependable

Top selling Magnetic Yoke – B-200

Magnetic Yokes ‘B200’model has become our Top Selling Yoke, with these features it’s easy to see why!

Described by a repeat client,as: ‘Robust and Powerful’

Inline RCD from Magnetic Yokes

Magnetic Yokes Inline RCD from Magnetic Yokes Do You power your Magnetic Yoke from a Generator? Do You power your Magnetic Yoke from a Battery with Inverter? Do You power your Magnetic Yoke from an unprotected Power Supply? Do You use your Magnetic Yoke with a basic Extension Cord? If So!, You need the Inline…

Product Profile; Permanent Magnet Set

Magnetic Yokes presents the Permanent Magnet Set; PM-50.

The PM-50 from Magnetic Yokes is the unique Compact permanent magnet set for Magnetic Particle Inspection by DC where permissible or when AC is just not possible.

Product Profile; MPIWA White Background

Magnetic Yokes presents SMARTCHECK MPI WHITE – MPIWA. This new generation, rapid drying white contrast aerosol paint is formulated specifically to provide a white background to enhance indications in visible magnetic particle inspections in conjunction with SMARTCHECK MPI Black Ink – MPIBA

Detecting Cracks on Galvanised Infrastructure with MPI

Magnetic Yokes knows particular attention must be paid to Hot-Dip Galvanised Steel items when testing for cracks by Magnetic Particle Inspection (MPI)

Parker P-2s Lightest but no lightweight

The P-2S magnetic yoke from Parker comes in at only 2.22kg with the cord, this makes it one of the lightest yokes around. The slim housing design and grooved finger grip greatly assist in reducing fatigue whilst conducting magnetic particle inspection (MPI).

DEUTROMETER 3873

The DEUTROMETER 3873 measures magnetic fields, both Direct & Alternating in the low-frequency range. Specialist knowledge gained by Karl Deutsch acquired over many years enabled the development and assists the continued evolvement of our Deutrometer. The 3873 being current Karl Deutsch model.

Free Magnetic Yoke Calibration Certificate*

Magnetic Yokes   Purchase Any New Magnetic Yoke   Receive a FREE Calibration Certificate Offer Ends June 30th’    .
